WebAudioAPI Experiments

I am passionate about Audio, specifically digital sound & processing. Since I've been introduced to the WebAudioAPI and technologies like WebGL and Three.js, I am very excited for the future of interactive media in the browser.

Contents:

• freq_domain_visualiser: Real-Time Frequency Domain audio analysis with 2D canvas visualisations.
• time_domain_visualiser: Real-Time Time Domain audio analysis with 2D canvas visualisations.
• sound_factory_object: A nicer way to write the code using an object filled with functions, with a HTML5 player good to go. This code does not include the 2D canvasing, just both methods of audio analysis ready to be called.

Coming soon (hopefully)..

• High pass filter
• Low pass filter
• Custom audio player

types of webaudio nodes

Source nodes

• Sound sources such as audio buffers, live audio inputs, tags, oscillators, and JS processors(ScriptProcessorNode).

Modification nodes

• Filters, convolvers, panners, JS processors, etc.

Analysis nodes

• Analyzers and JS processors

Destination nodes

• Audio outputs and offline processing buffers

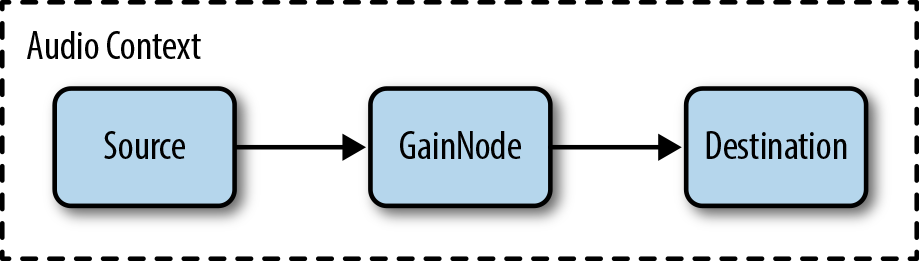

Simple example of node flow

Audio-Definition: Waveform

A waveform is an image that represents an audio signal or recording. It shows the changes in amplitude over a certain amount of time. The amplitude of the signal is measured on the y-axis (vertically), while time is measured on the x-axis (horizontally).

Audio-Definition: Sample Rate / Sample Frequency

Sampling rate or sampling frequency defines the number of samples per second (or per other unit) taken from a continuous signal to make a discrete or digital signal. For time-domain signals like the waveforms for sound (and other audio-visual content types), frequencies are measured in in hertz (Hz) or cycles per second.

Audio-Definition: Nyquist's Theorum / Principle

The Nyquist–Shannon sampling theorem (Nyquist principle) states that perfect reconstruction of a signal is possible when the sampling frequency is greater than twice the maximum frequency of the signal being sampled. For example, if an audio signal has an upper limit of 20,000 Hz (the approximate upper limit of human hearing), a sampling frequency greater than 40,000 Hz (40 kHz) will avoid aliasing and allow theoretically perfect reconstruction.

Audio-Definition: Frequency | Wavelength | Pitch

Audio waves with a longer wavelength don't arrive (at your ear, for example) as often (frequently) as the shorter waves. This aspect of a sound - how often a wave peak goes by, is called frequency by scientists and engineers. They measure it in hertz, which is how many wave peaks go by in one second. People can hear sounds that range from about 20 to about 17,000 hertz. Lower frequency sounds have a longer wavelength, and therefor travel further.

Audio-Definition: Bitrate

Bitrate is a measure of data throughput in a given amount of time. Simply put, it's the number of bits that are processed every second. For example, the audio data in an MP3 file which has been encoded with a constant bitrate (CBR) of 128kbps will be processed at 128,000 bits every second.

Audio Context

In order to start using the API, we must first create an AudioContext. Think of this as a canvas for sound. It’s a container for all the playback and manipulation of audio we’re going to be doing. We create it by simply doing this:

var audioContext = new (window.AudioContext || window.webkitAudioContext)();

Creating an Analyser Node

Creates an AnalyserNode. var analyser = context.createAnalyser();

fftSize

The fftSize basically determines the number of bins(or bands [audio term]), this is used for the frequency-domain analysis. It must be to the power of 2, and a minimum of 32. It determines how large the frequency range one single bin(band) will cover.

analyser.fftSize = 32;

The actual number of bins (bands) in this example would be 16. As it is divided by 2.

Creating an Audio Object

Great feature for using an audio object is that it can be rendered to the DOM in the form a HTML5 Audio Player!

// creating an Audio object
  var audio0 = new Audio();
  audio0.src = 'assets/ConfessToMe.mp3';
  audio0.controls = true;
  audio0.autoplay = false;
  audio0.loop = true;

HTML5 Audio Player

Appending an Audio() object to the DOM:

$('#empty-div').append(Sound.audio0);

Creating the Source, and connecting the nodes.

var source;
  // Creating a Source Node and passing our audio0 object into it
  source = context.createMediaElementSource(audio0);
  // connecting the source to the analyser
  source.connect(analyser);
  // connecting the source & analyser to the speakers (destination)
  analyser.connect(context.destination);

getFrequencyByteData

Copies the current frequency data into the passed unsigned byte array. If the array has fewer elements than the frequencyBinCount, the excess elements will be dropped.

Making the function that makes it all happen

  // Uint8Array = Unsigned Integer 8bit Array
  // Values between 0-255 will be pushed into this array
  // Which represent -1 to +1 (in audio terms)
  var frequencyData = new Uint8Array(analyser.frequencyBinCount);

  // Function that receives & returns the frequencyData
  var getFrequencies = function() {
    // Copies the current frequency data into the passed unsigned byte array.
    analyser.getByteFrequencyData(frequencyData);

    return frequencyData;
  }

Play & Pause

var samplerID = null;
$(".play").on('click', function() {
  audio0.play();

  // using this setInterval function is a way to display results to the console for viewing. When sending this data for visual processing a ScriptProccessorNode will be used instead.
  samplerID = window.setInterval(function() {
    // Calls getFrequencies, and sets an interval rate.
    console.log(getFrequencies());
  }, 100);
});

$(".stop").on('click', function() {
    audio0.pause();
    audio0.currentTime = 0;
    // Stops the frequency data from being returned.
    clearInterval(samplerID);
  });

2D canvas visualiser

Setting up the Canvas

<canvas id="canvas" width="512" height="256" ></canvas>
<style>
  #canvas {
    margin-left: auto;
    margin-right: auto;
    display: block;
    background-color: black;
  }
  #controls, h1 {
    text-align: center;
  }
  #start, #stop {
    font-size: 16pt;
  }
</style>

Setting the rendering context / canvas context

// 2D rendering context for a drawing surface of a `<canvas>` element.
var ctx = $("#canvas")[0].getContext("2d");

Script Processor Node

This interface is an AudioNode which can generate, process, or analyse audio directly using JavaScript.

var javascriptNode = audioContext.createScriptProcessor(sampleSize, 1, 1);

• Often named javascriptNode.

This node also need to be connected to the analyserNode and the destination:

analyserNode.connect(javascriptNode);
javascriptNode.connect(audioContext.destination);

Drawing Function

var canvasWidth  = 512;
var canvasHeight = 256;
var drawTimeDomain = function() {
  clearCanvas();
  for (var i = 0; i < amplitudeArray.length; i++) {
    var value = amplitudeArray[i] / 256;
    var y = canvasHeight - (canvasHeight * value) - 1;
    ctx.fillStyle = '#ffffff';
    ctx.fillRect(i, y, 1, 1);
  }
};

var clearCanvas = function() {
  ctx.clearRect(0, 0, canvasWidth, canvasHeight);
};

Start audio & draw

// Play sound & visualise
$("#start").on('click', function() {
  audio0.play();
  // An event listener which is called periodically for audio processing.
  javascriptNode.onaudioprocess = function () {
    // Get the Time Domain data for this sample
    analyserNode.getByteTimeDomainData(amplitudeArray);
    // Draw..
    requestAnimFrame(drawTimeDomain);
  }
});
